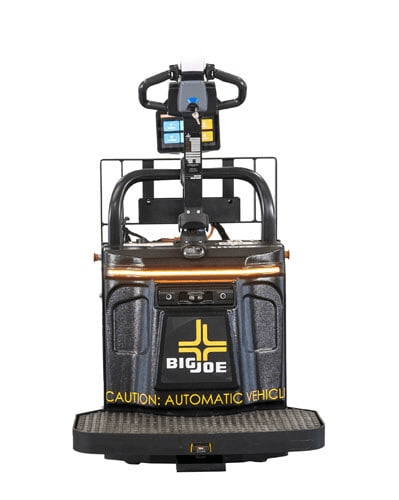

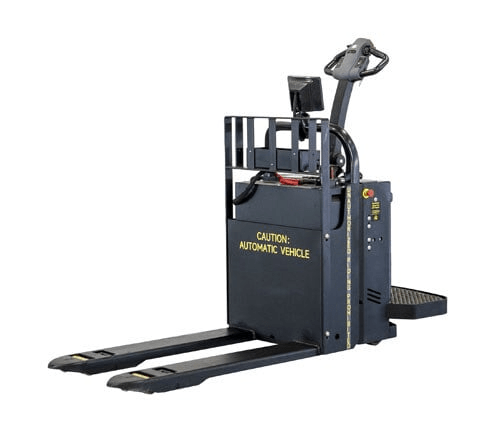

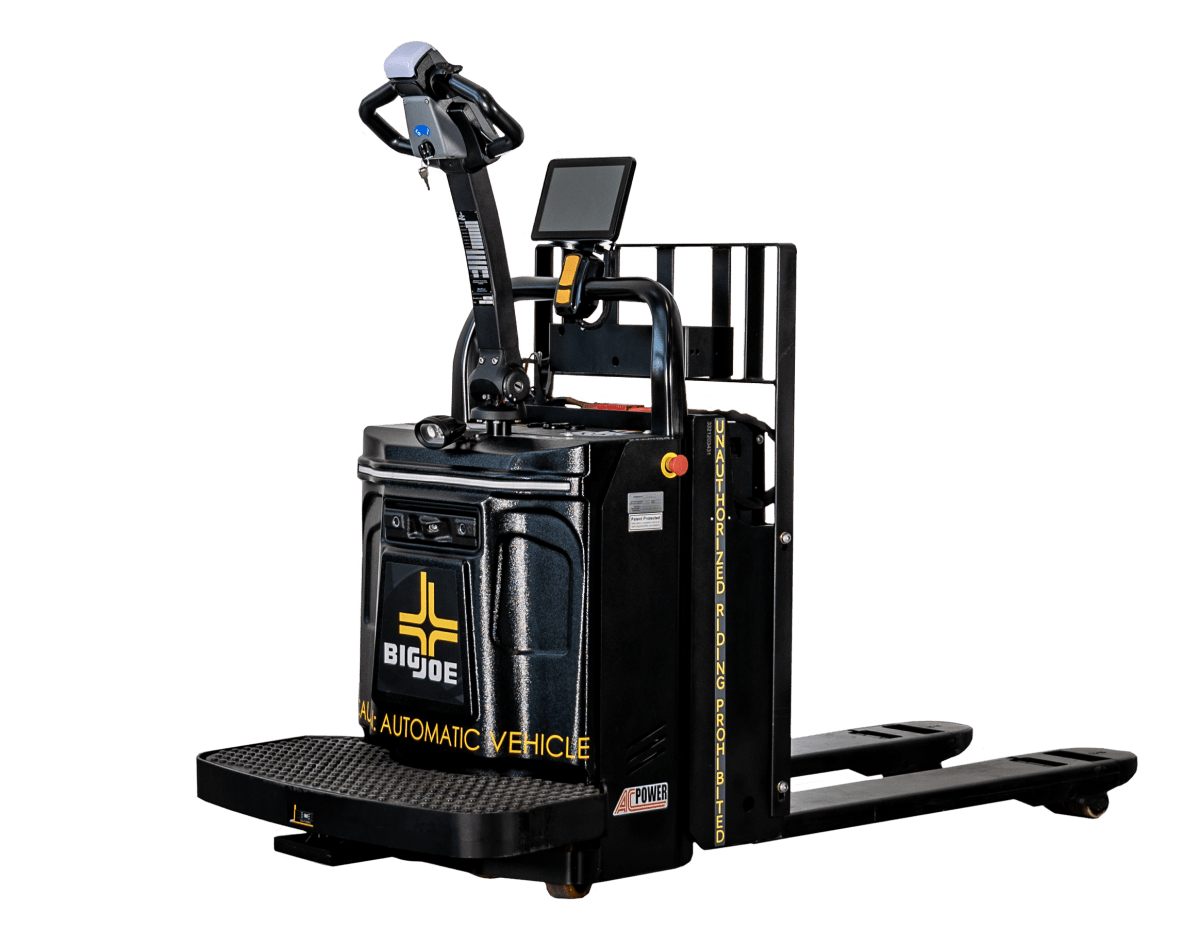

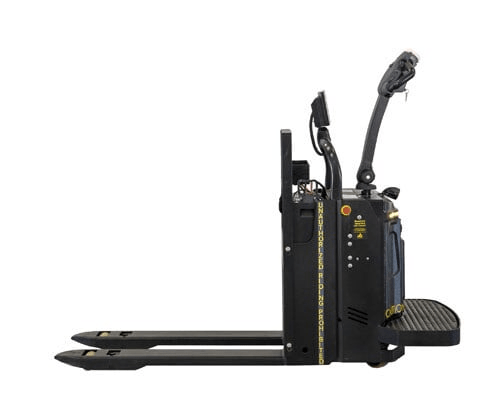

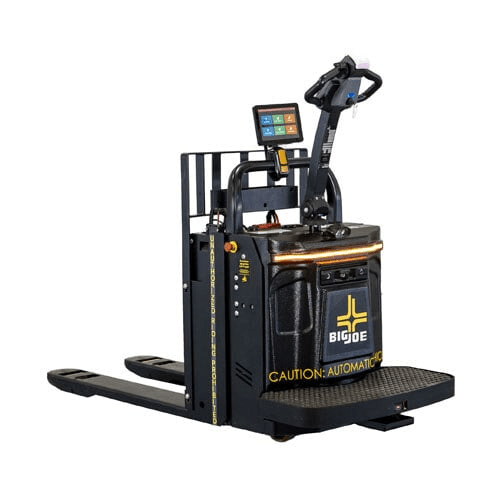

AMR

Pallet Mover User Directed

Easy To Set-Up, Map & Start Missions In Less Than 1 Hour!

Developed in partnership with Thoro.ai, the Big Joe Pallet Mover AMR is an easy to deploy solution for autonomous floor-to-floor pallet transportation and drop-off that companies can set up and put into operation in less than 1 hour. This new Big Joe unit seeks to revolutionize on-demand material handling across a broad number of industries by offering self-driving technology at an accessible price point on one of the most common material handling vehicles, an electric pallet truck. The new Big Joe Pallet Mover works just like a conventional lift truck but features an intuitive user interface, onboard computer, LiDAR, and camera system to transport and drop pallets to locations autonomously once the operator loads it up and selects a mission. This collaborative approach uses self-driving technology as a productivity force multiplier by giving workers the ability to focus on higher-value tasks or direct multiple independent workflows concurrently. With the ability to use the machine in manual mode at any time, the flexibility of the Pallet Mover AMR allows it to bring efficiencies to facilities without intensive changes to their operations or need for any infrastructure other than a wi-fi connection for software updates if desired.

✓ Authorized Big Joe Dealer

✓ 100% Electric Expertise

✓ Ships within 48 hours

✓ No-inventory dealer programs

✓ New & Certified Pre-owned

✓ Application & technical support

Features
Specifications
Videos

Product Highlights

•4,400lb Capacity with Autonomous Travel Speed of up to 2.8 MPH
•Intuitive Touch Screen User Interface
•Integrated 205AH UL Recognized Li-ion Battery and 120vac Charger
•Control Head Beacon
•Blue Light
•Stereoscopic Camera
•270 Degree Forward Facing LiDAR
•Low-profile Forks: 3" to 7.6" Elevation
•Compact Rider Platform

Vehicle Type User Directed AMR
Capacity 4,400lbs. @ 24" load center
Power UL recognized 24v 205AH Li-ion battery
Max Lift Height 7.6"
Collapsed Height 2.99"
Fork Dimensions 27" x 47.25"
Vehicle Dimensions See specification sheet
Turning Radius See specification sheet
Travel Speed See specification sheet
Battery Compartment See specification sheet
Battery Capacity See specification sheet
Charger Onboard 120vac
