J0 JOEY

Task Support Vehicle

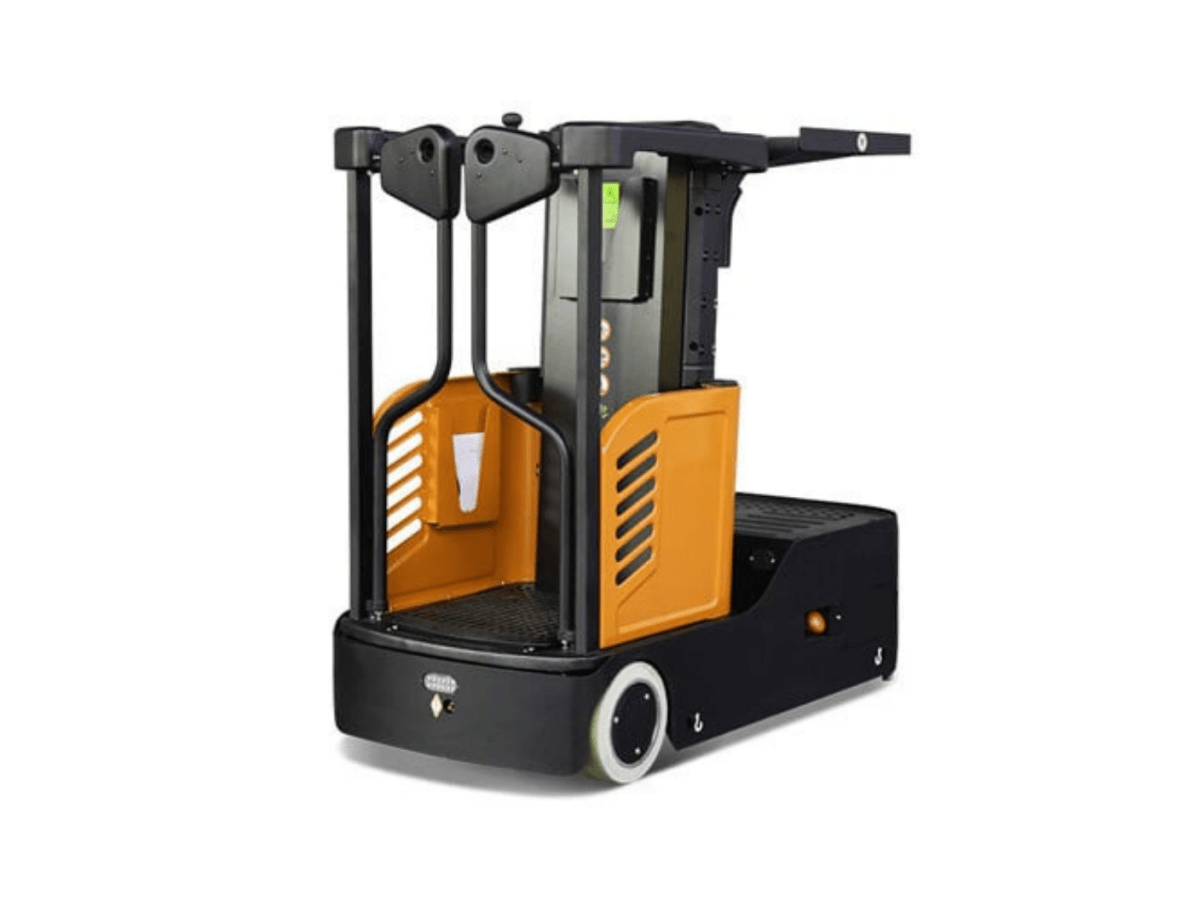

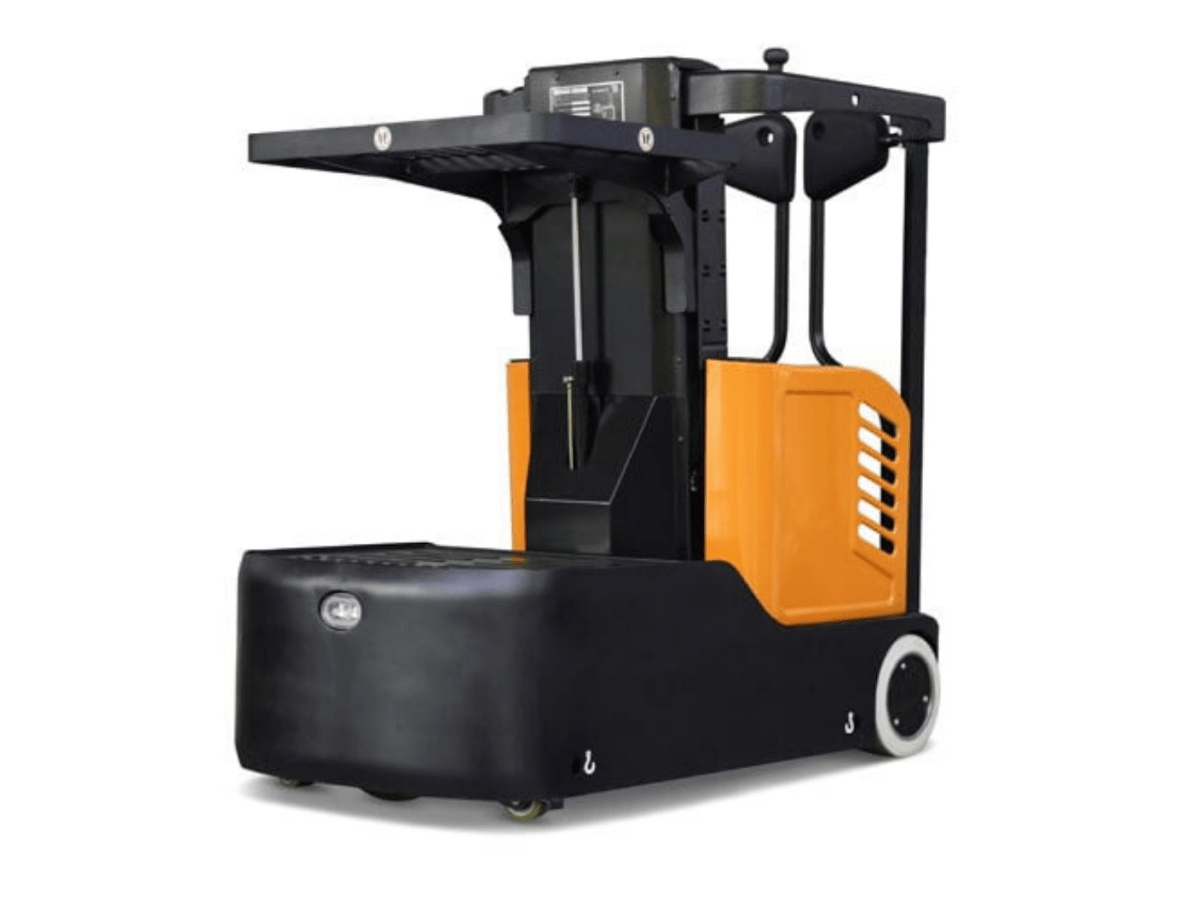

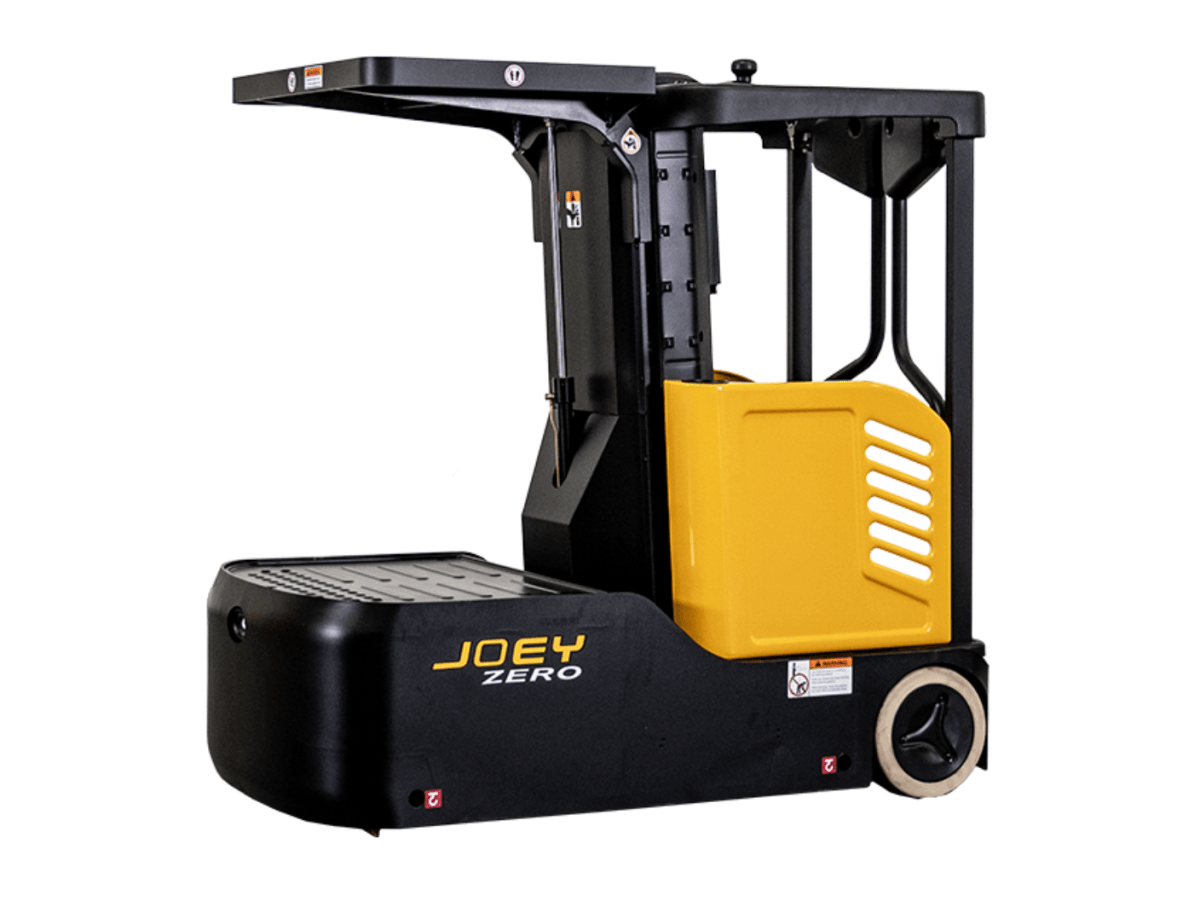

The Joey Zero Electric Access Vehicle, model J0-118 - is a compact and flexible solution for those looking to replace ladders and improve productivity in warehouse, retail and other industrial and commercial operations. Available with standard AGM batteries or an optional 135Ah lithium-ion battery pack for faster charging and maintenance-free operation, the Zero can help workers do a wide range of elevated tasks more safely including those found in order picking, shelf stocking, inventory management, maintenance, and assembly.

With a maximum operator platform height of 118” and a total vehicle capacity of 750lbs (200lbs front load tray, 250lbs front load deck, 300lbs operator's compartment), the Zero packs a great deal of capability into a modest 57” x 29.5” vehicle footprint. Ergonomic and logically orientated controls provide for intuitive and accurate operation, and a permanent magnet drive motor delivers reliable performance across both battery configurations.

Standard features include a powered front load tray, electronic power steering, forward projecting blue light and integral 110v smart charger.


US patents pending

✓ Authorized Big Joe Dealer

✓ 100% Electric Expertise

✓ Ships within 48 hours

✓ No-inventory dealer programs

✓ New & Certified Pre-owned

✓ Application & technical support

Features
Specifications
Videos

Product Highlights

• Automatic locking rear entry gate when elevated
• 200lb capacity POWERED LOAD TRAY
• 750lb total capacity
• 118” maximum lift height
• Electronic Power Steering
• Field proven permanent magnet DC drive motor
• Obstruction presence sensors below operator compartment
• Integral batteries and charger

Vehicle Type Electric Access Vehicle
Maximum Capacity 750lbs. (300 operator / 200 front load tray / 250 front load deck)
Power 24V infinitely variable travel controller
Max Lift Height Operator platform raises to 118"
Collapsed Height 54"
Vehicle Dimensions Consult specification page
Battery Capacity (Lithium) 135AH Li-Ion battery pack (non-UL recognized)
Battery Capacity (Standard) (2) 12V 120AH AGM maintenance free batteries
Charger 110 VAC plug-in smart charger
