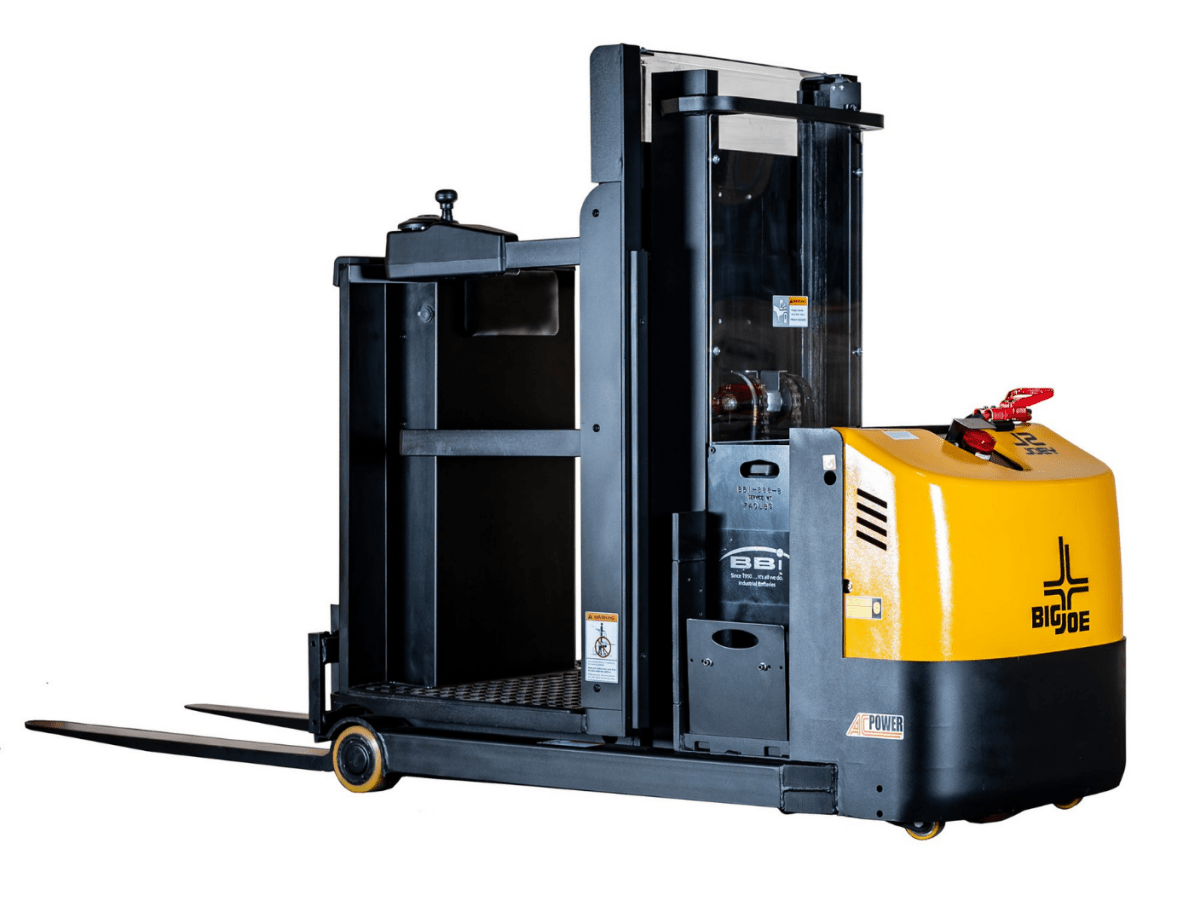

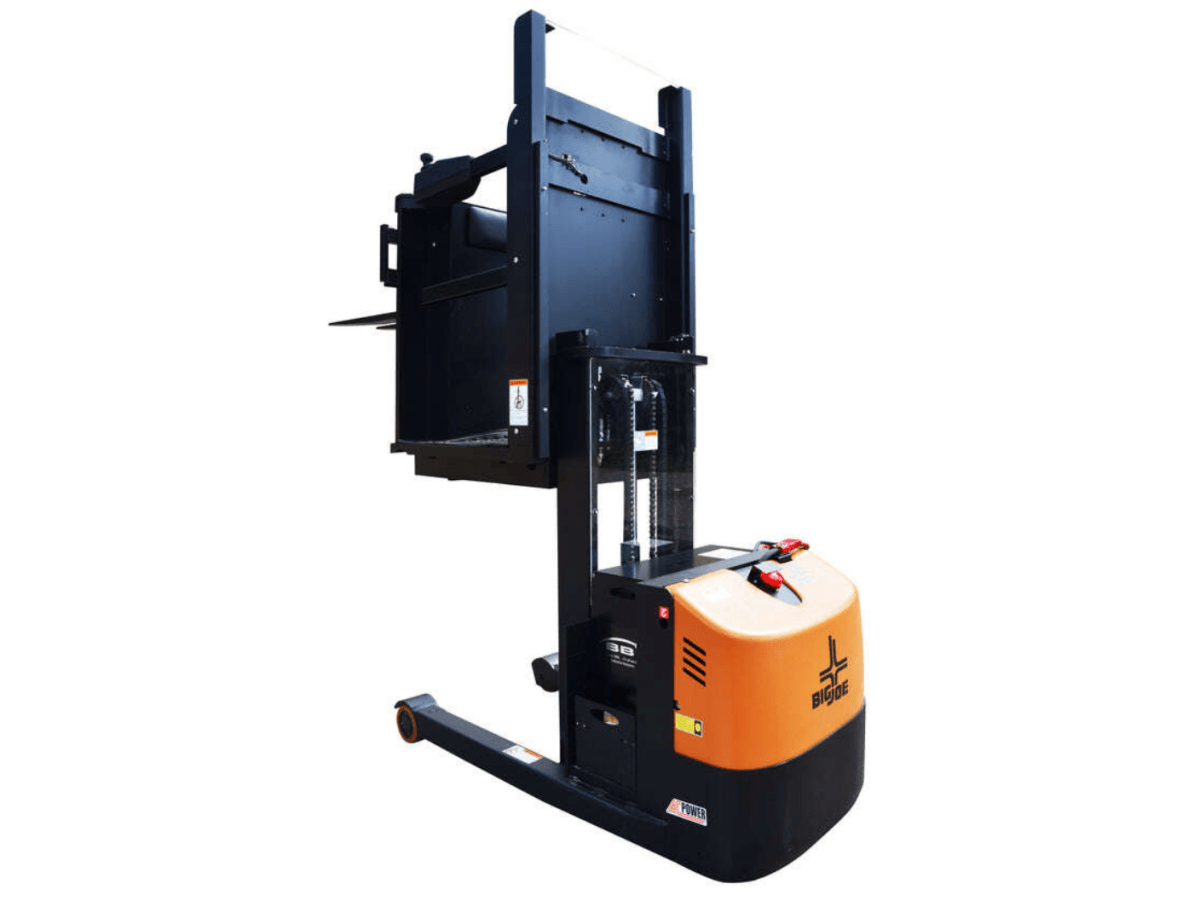

J2-72 JOEY

Low-Level Order Picker

The J2 "JOEY" Low Level Order Picker combines the compact design and exceptional maneuverability of our J1 Task Support Vehicle with attributes of a counterbalanced forklift. The result is a versatile machine that can be used for low level order picking, and staging of pallets.

Utilizing many of the same reliable components as the J1, the J2 low level order picker can elevate an operator 48" and features a mini mast that can lift up to 2,200 lb loads to a 72" elevation.  The J2 Low Level Order Picker offers travel speeds up to 4.5mph.

J2 Low Level Order Picker can be used to effectively order pick from low level locations and improve access to pick faces close to the floor.  Travel is provided by a high efficiency AC drive motor on each unit that can be programmed through the onboard LCD dash.  Power comes from a 340AH industrial battery or 224AH AGM maintenance free battery pack that is an available option.

J2-72 2,200lb. @ 24" load center on front mini mast to 72"

✓ Authorized Big Joe Dealer

✓ 100% Electric Expertise

✓ Ships within 48 hours

✓ No-inventory dealer programs

✓ New & Certified Pre-owned

✓ Application & technical support

Features
Specifications
Videos

Product Highlights

•LCD dash display with selectable travel settings and diagnostics
•Electronic power steering with infinitely variable speed control
•Finger tip controls integrated into retractable vehicle guardrails
•180 degree articulating driveline with compact minimum turn radius
•Optional forward controls eliminate the side guardrails
The J2 Joey Low Level Order Picker has multiple patents pending

Vehicle Type Low Level Order Pickers
Maximum Capacity 2,200@ 24" LC
Power 24 volt AC electric with Zapi transistor control
Max Operator Height 48"
Max Fork Height 72"
Vehicle Dimensions See specification sheet
Battery Capacity 340AH Industrial or 224AH 5.4kWh AGM battery pack
Charger External of Integral 120v smart charger
