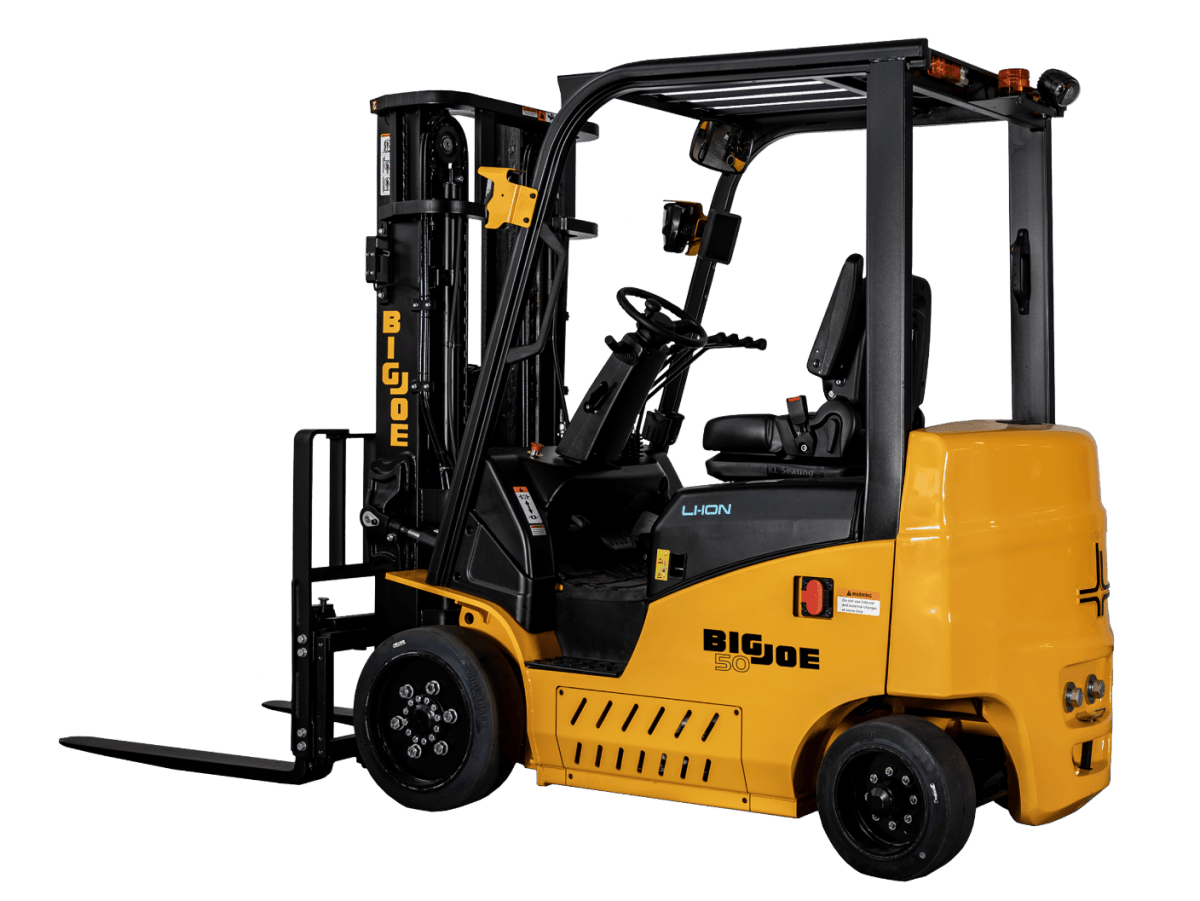

LCE50-65S

5,000-6,500 lb. Capacity Integrated Lithium-Ion Four-Wheel Cushion Electric Forklift

Productivity that rivals internal combustion. Savings that start on day 1.

Looking to electrify your internal combustion fleet? This is the solution. The LCE50-65S is designed for high productivity in warehouse and logistics operations. Big Joe’s purpose-built, integrated Lithium-ion battery and powertrain deliver high performance in a package that was designed with operator comfort and productivity in mind.

✓ Authorized Big Joe Dealer

✓ 100% Electric Expertise

✓ Ships within 48 hours

✓ No-inventory dealer programs

✓ New & Certified Pre-owned

✓ Application & technical support

Get a Quote
Spec Sheet
Features
Specifications
Videos

Product Highlights

• Designed to Meet or Exceed Performance of Internal Combustion Forklifts

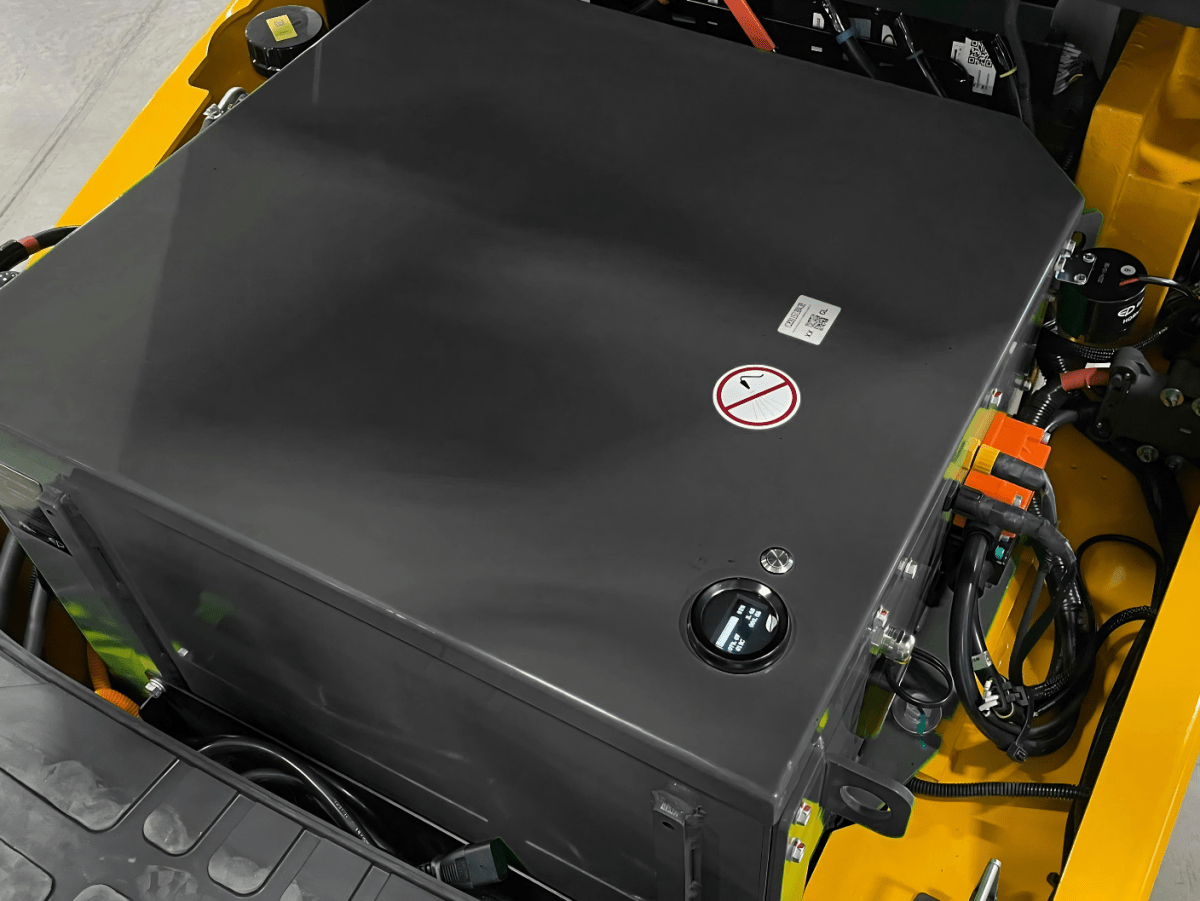

• UL-Recognized Integrated Lithium-ion Maintenance-free Battery
• Available with 18.4kWh and 36.8kWh Batteries

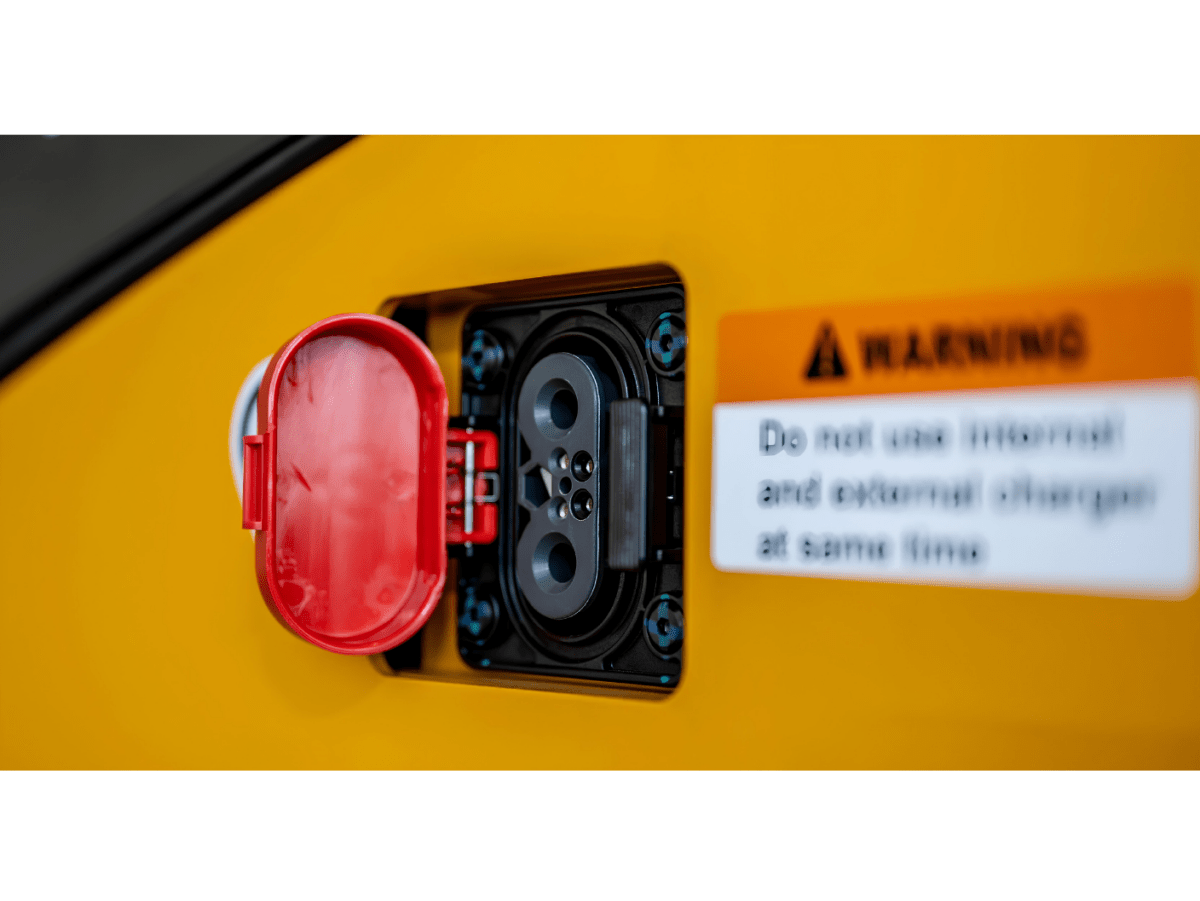

• Onboard 120/240VAC Battery Charger with Power Cords
• Bluetooth-Enabled LCD Display for Diagnostics and Tuning
• 80V AC Drive and Hydraulic Pump Motors
• Foot-Activated Parking Brake Lever
• Low Dash for Excellent Visibility

LCE50S LCE65S
Capacity at 24in. Load Center 5,000 lbs. 6,500 lbs.
Battery Size 36.8kWh 36.8kWh
Overhead Guard Height (in.) 83.1 83.1
Overall Width (in.) 43.0 44.2
Right Angle Stack (in.) 96.3 99.3
Max Travel Speed (mph) 10.6 11.2
Max Lift Speed (ft/min.) 126.0 124.0
