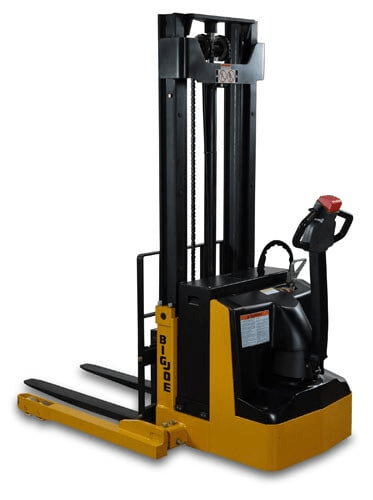

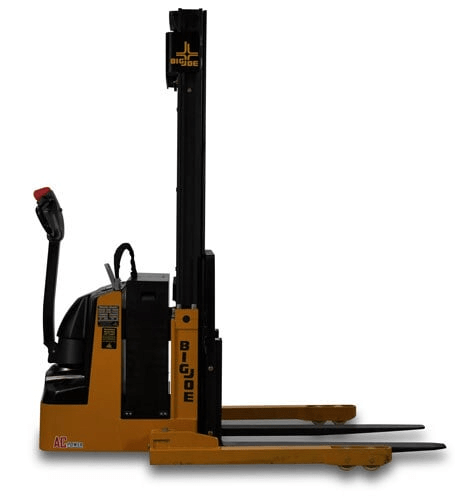

PDS25

2,500 lb. Power Drive Straddle Truck

2,500lb. capacity models with lift heights to 157"

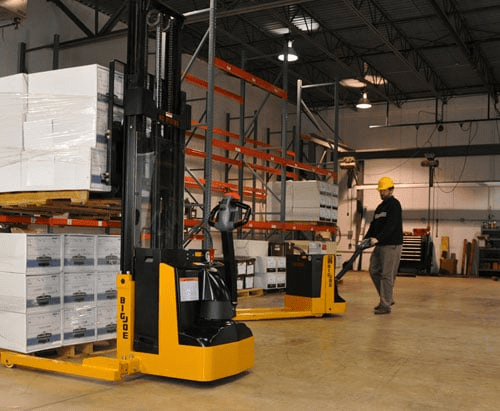

An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.

✓ Authorized Big Joe Dealer

✓ 100% Electric Expertise

✓ Ships within 48 hours

✓ No-inventory dealer programs

✓ New & Certified Pre-owned

✓ Application & technical support

Get a Quote
Spec Sheet
Features
Specifications
Videos

Product Highlights

• 24 volt ZAPI transistor control
• High torque AC drive motor.
• Double reduction helical ZF GK10 transmission
• Shaft mounted electromechanical brake
• Creep speed operation for tight turning in close quarters
• Ergonomic handle with safety reversing switch and horn
• 224AH Maintenace free battery pack with integral charger
• Battery discharge indicator with hour meter
• Key switch to limit access to approved personnel

Vehicle Type Walkie Straddle Stackers
Capacity 2,500lbs. @ 24" load center
Power 24 volt AC electric with ZAPI transistor control-inverter
Max Lift Height Masts available up to 157"
Collapsed Height Masts available as low as 71"
Fork Dimensions 42" L x 4" W x 1.5" Thick
Vehicle Dimensions 64.5" OAL x 44" OAW
Turning Radius 60.7"
Travel Speed Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
Battery Compartment 26.37" x 9.06" x OPEN
Battery Capacity 224AH Maintenance free battery pack
Charger Integral to pack, 110v plug-in
