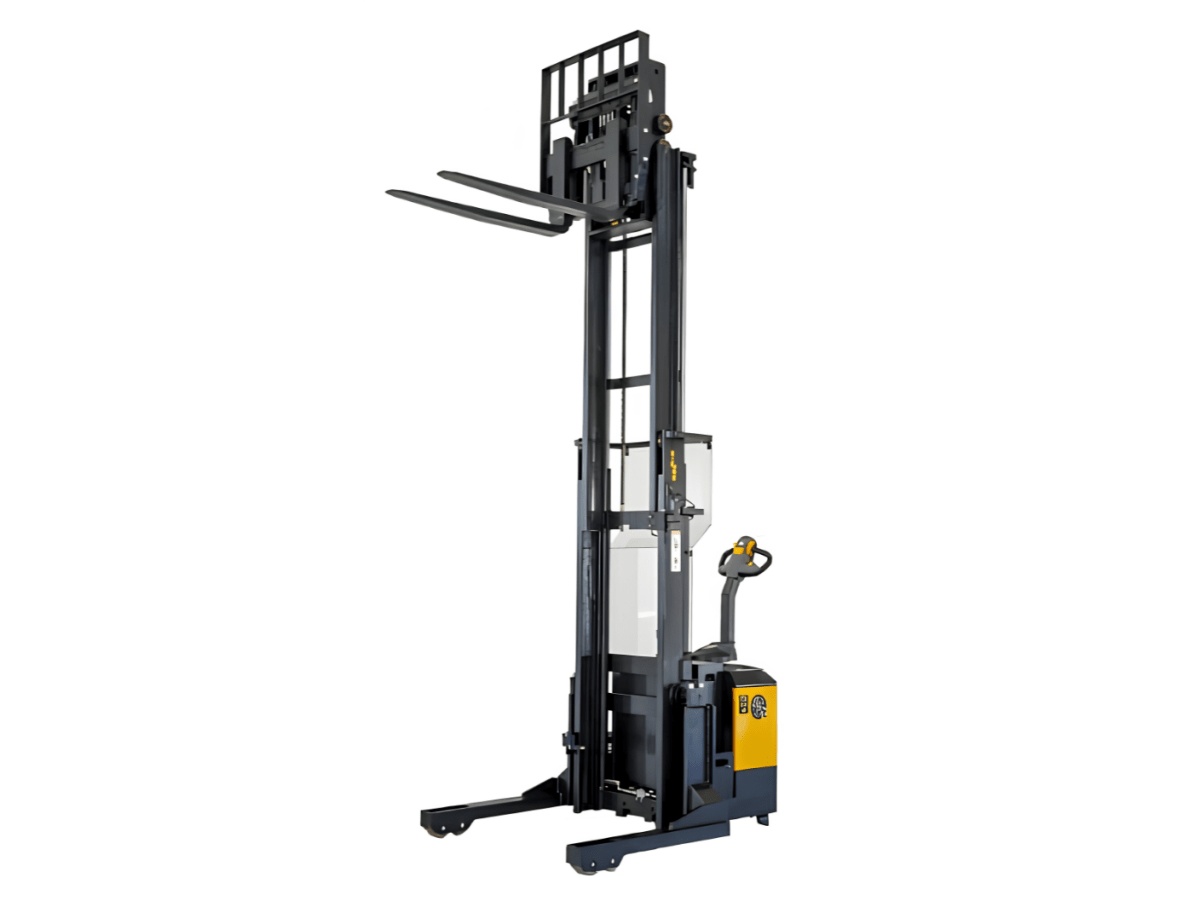

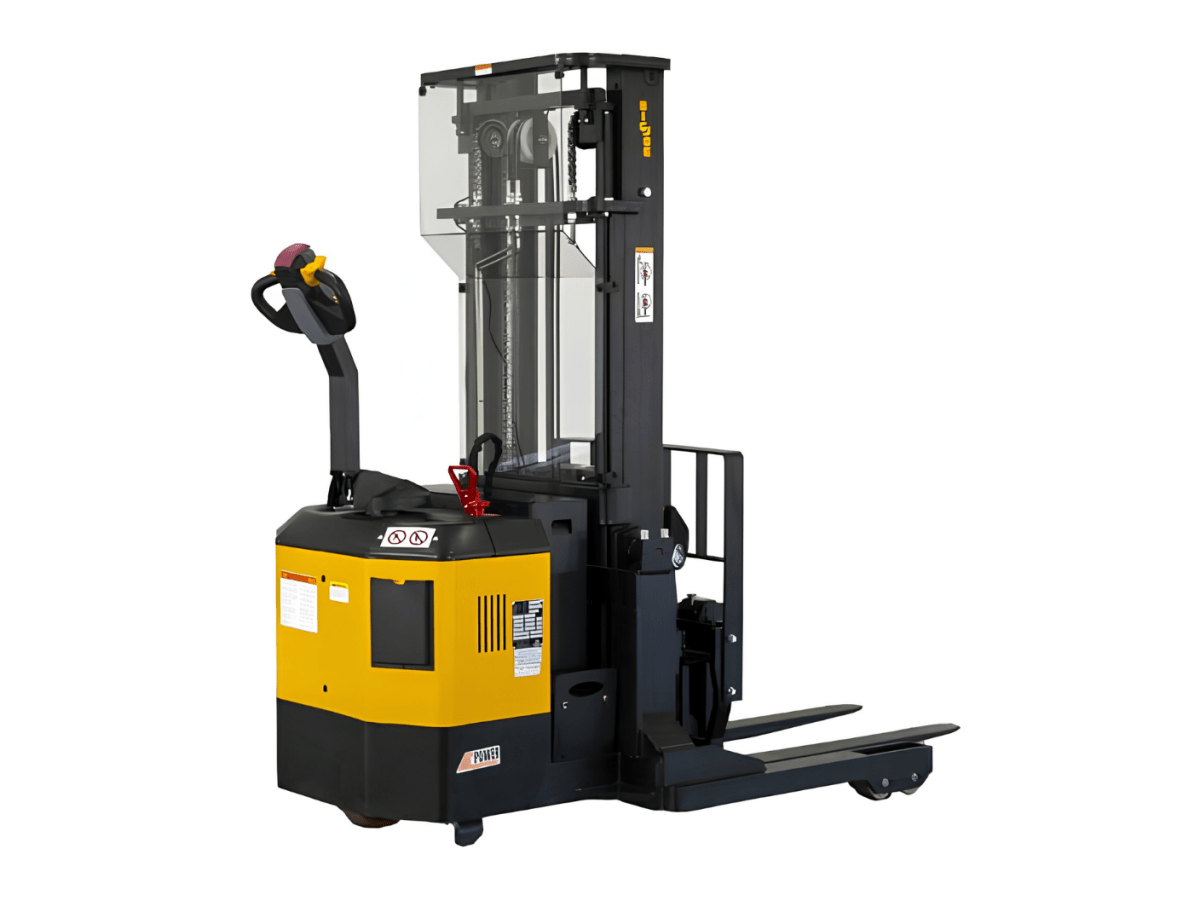

PDSR

3,000 lb. Walkie Reach Truck

3,000lb capacity models with lift heights to 189"

The PDSR combines the tight turning characteristics and low operating cost of a walkie straddle stacker with the flexibility of a counterbalanced truck through the use of a pantograph, available with a choice of lithium-ion or lead-acid battery power. This mechanism extends the loads being handled beyond the straddle legs to lift or lower products and can be retracted for compact turns. With the addition of power steering, sideshift, proportional hydraulics, and tilt, the PDSR delivers exceptional versatility and easy intuitive control.



✓ Authorized Big Joe Dealer

✓ 100% Electric Expertise

✓ Ships within 48 hours

✓ No-inventory dealer programs

✓ New & Certified Pre-owned

✓ Application & technical support

Get a Quote
Spec Sheet
Features
Specifications
Videos

Product Highlights

• 24volt ZAPI transistor control with high torque AC drive motor.

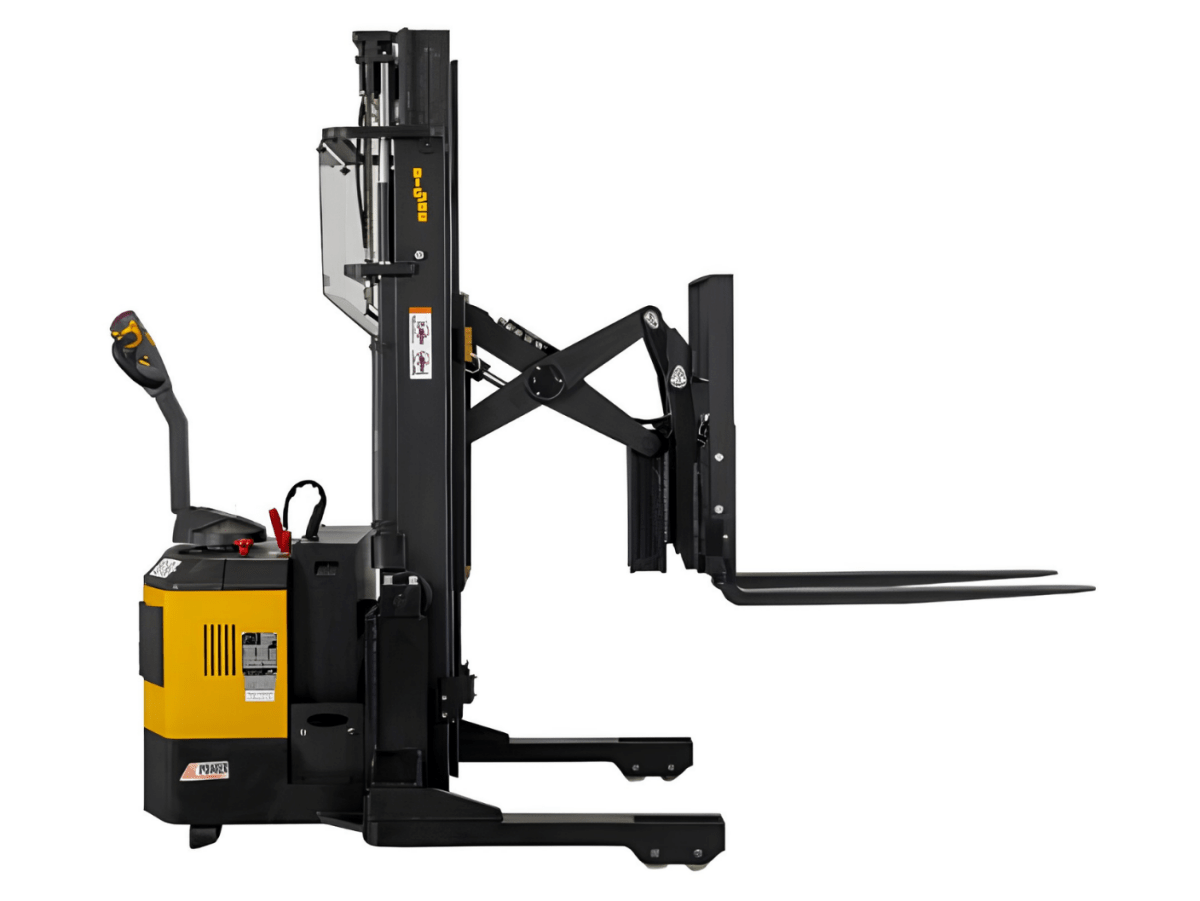

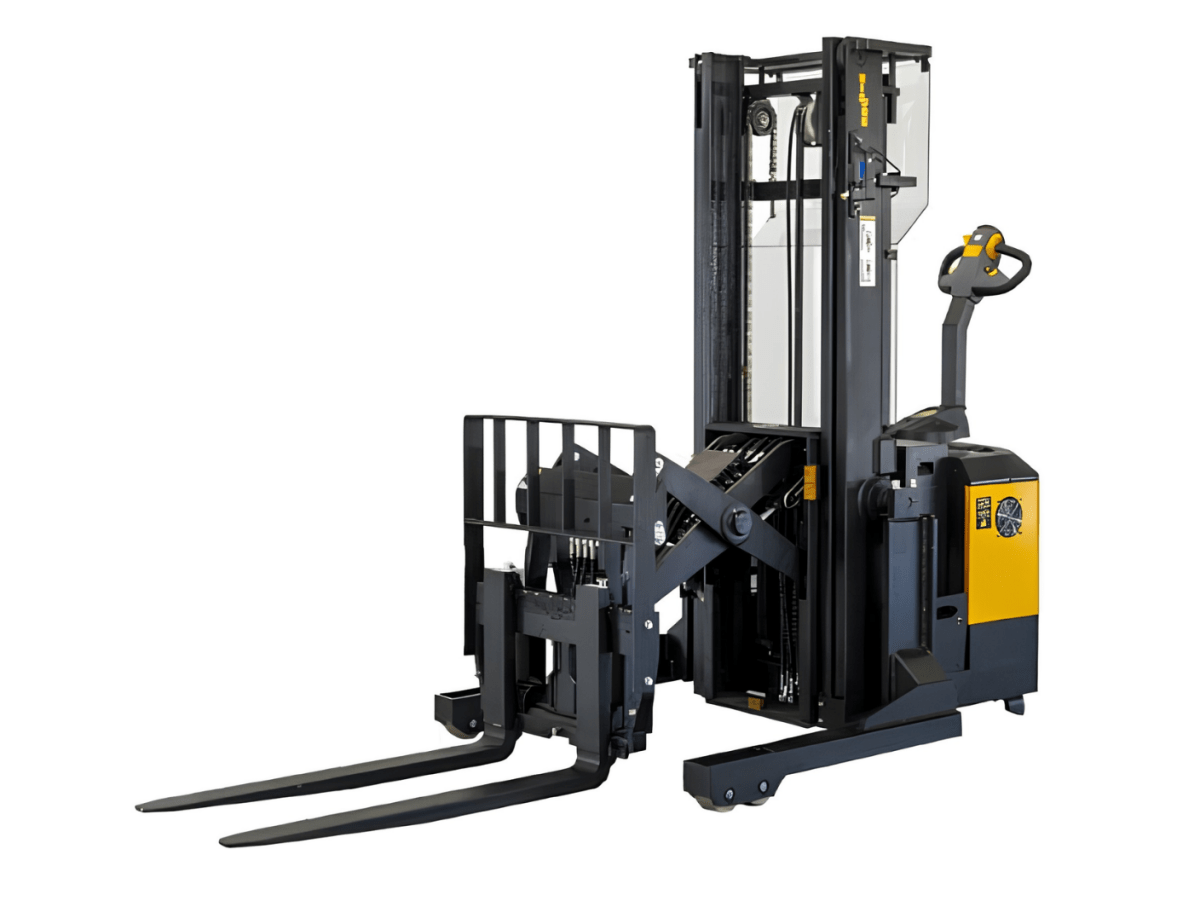

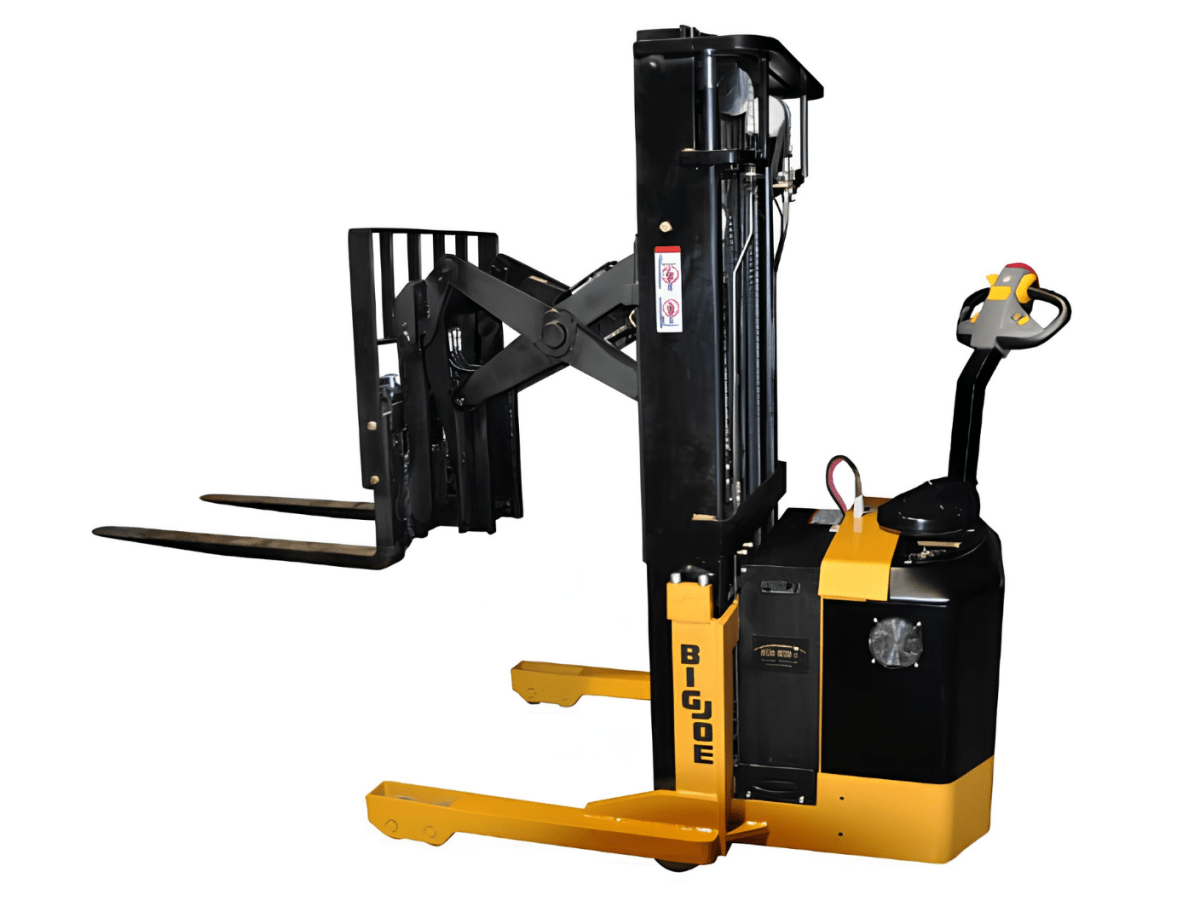

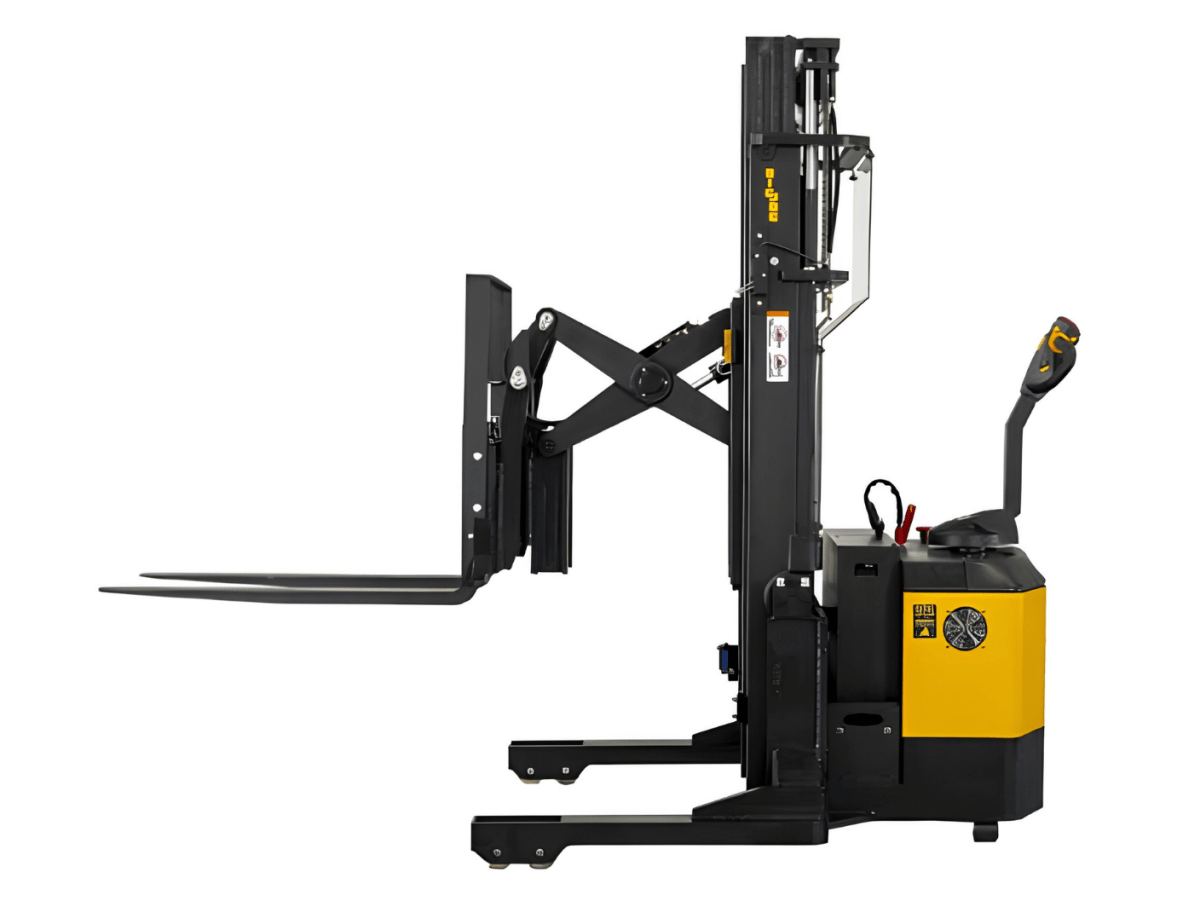

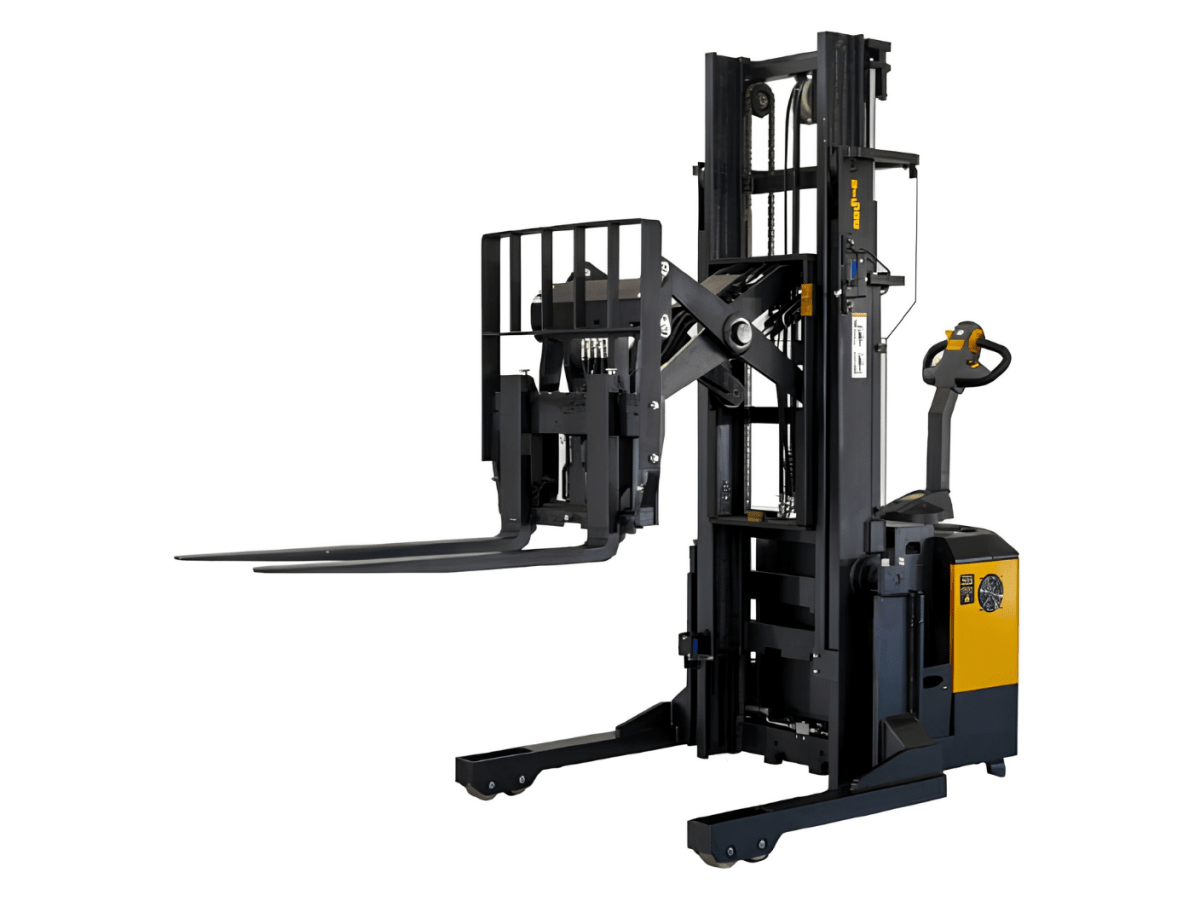

• Pantograph extends forks beyond straddle legs.
• Power steering, sideshift, tilt and proportional lift, lower, extend & retract
• Choice of 34"/42" or 42"/50" fixed straddle legs.

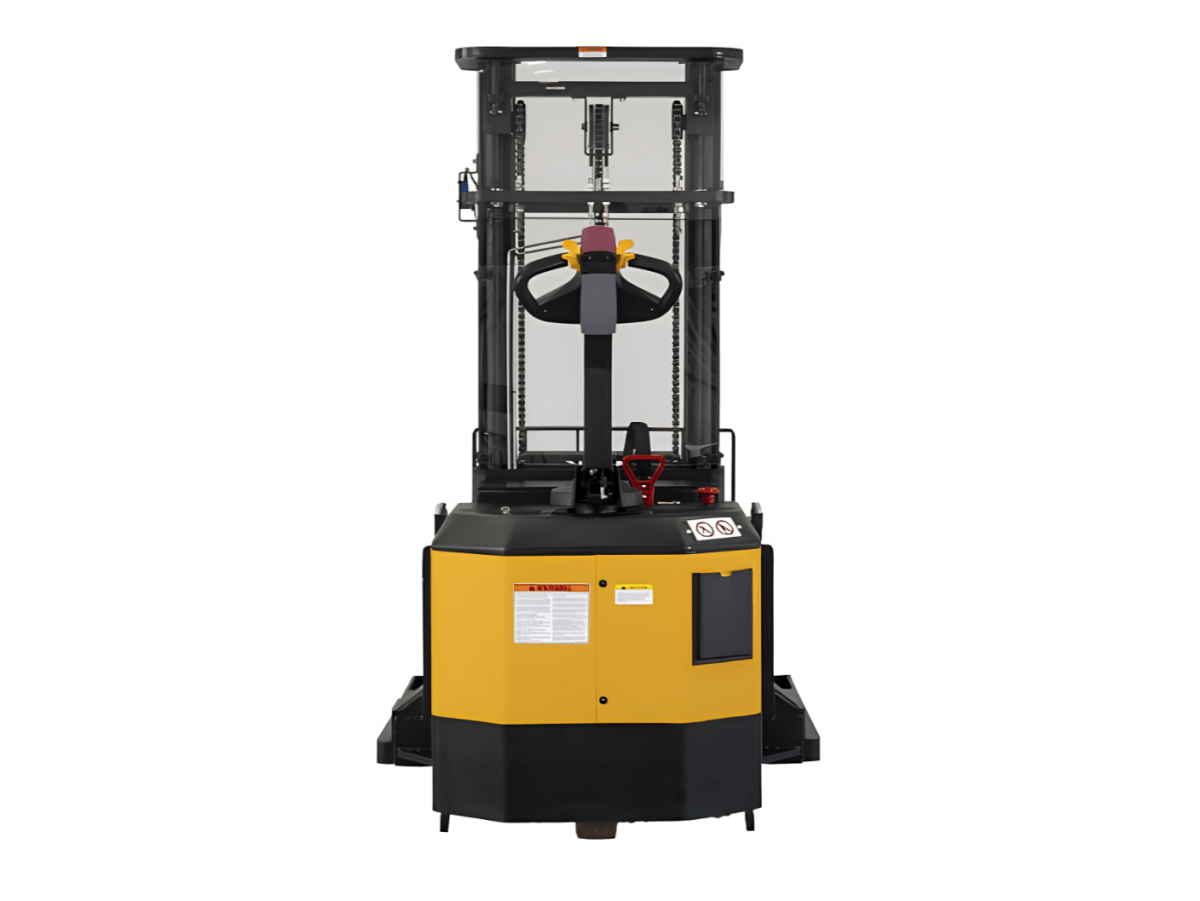

• Ergonomic control handle with safety reversing switch and horn
• Industrial battery or 224 AH Maintenace free battery pack
• Battery discharge indicator with hour meter
• Key switch to limit access to approved personnel

Vehicle Type Walkie Reach Stacker
Capacity 3,000lbs. @ 24" load center
Power 24 volt AC electric with ZAPI controller
Max Lift Height Masts available up to 189"
Collapsed Height Masts available as low as 76.5"
Fork Dimensions 42" L x 4" W x 1.5" Thick
Vehicle Dimensions See specification sheet
Turning Radius See specification sheet
Travel Speed Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
Battery Compartment 31.6" x 9.06" x OPEN / 31.6" x 13.0" x OPEN
Battery Capacity (Lithium) 205AH LFP battery pack (masts to 157") / 410AH LFP battery pack (189" mast)
Battery Capacity (Lead-Acid) Industrial battery or 224AH AGM battery pack
Charger External or 120v integral to battery pack
